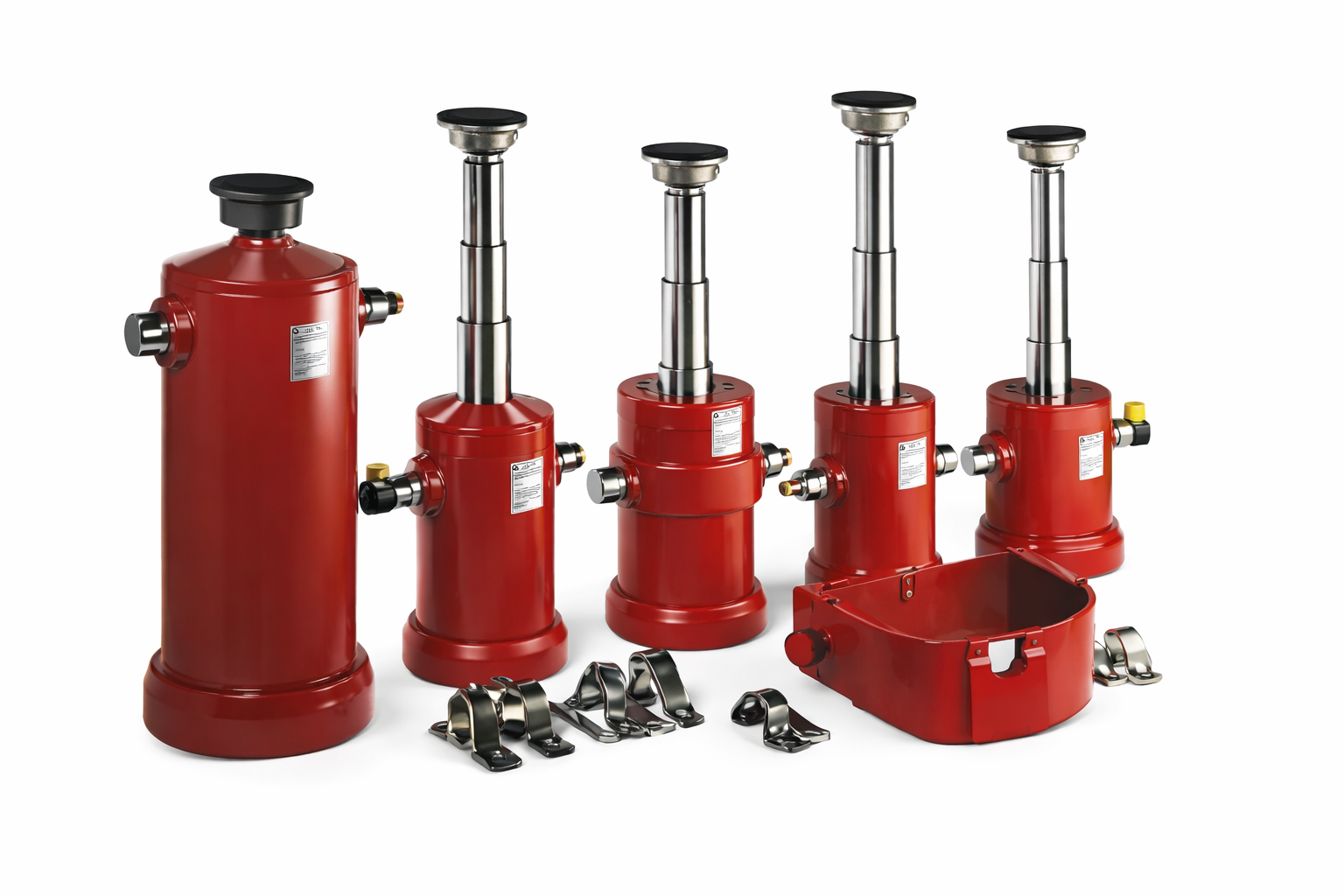

Single Underbody Hydraulic Rams (Mid Trunnion – UCB Series)

Designed for durability and reliable lifting performance, the Concept Hydraulics Single Underbody Rams are a proven solution for tipper trucks and trailers. Built with a mid trunnion mount for stability and efficient load distribution, these cylinders are ideal for a wide range of single ram applications.

Key Features

• Mid trunnion mounting for improved stability and strength

• High lifting capacity (rated up to 170 bar)

• Heavy-duty construction for demanding Australian conditions

• Multi-stage design for smooth and controlled lifting

• Wide range of models and stroke lengths available

• Standard BSP ports for easy integration

Performance & Design

• Designed to achieve a 50° tipping angle (under standard conditions)

• Smooth extension across multiple stages

• Compact closed height for efficient installation

• Engineered for consistent, reliable operation

Best Suited For

• Tipper trucks (light to medium duty)

• Small to medium rigid bodies

• General transport and agricultural applications

Important Notes

• Capacities are based on free-flowing loads and include body weight

• Measurements include required mounting allowances

• Maximum ball angle: 30°

Why Choose Concept Hydraulics?

• Proven reliability in Australian conditions

• Wide model range to suit different builds

• Australia-wide shipping

• Melbourne-based fitting support available
